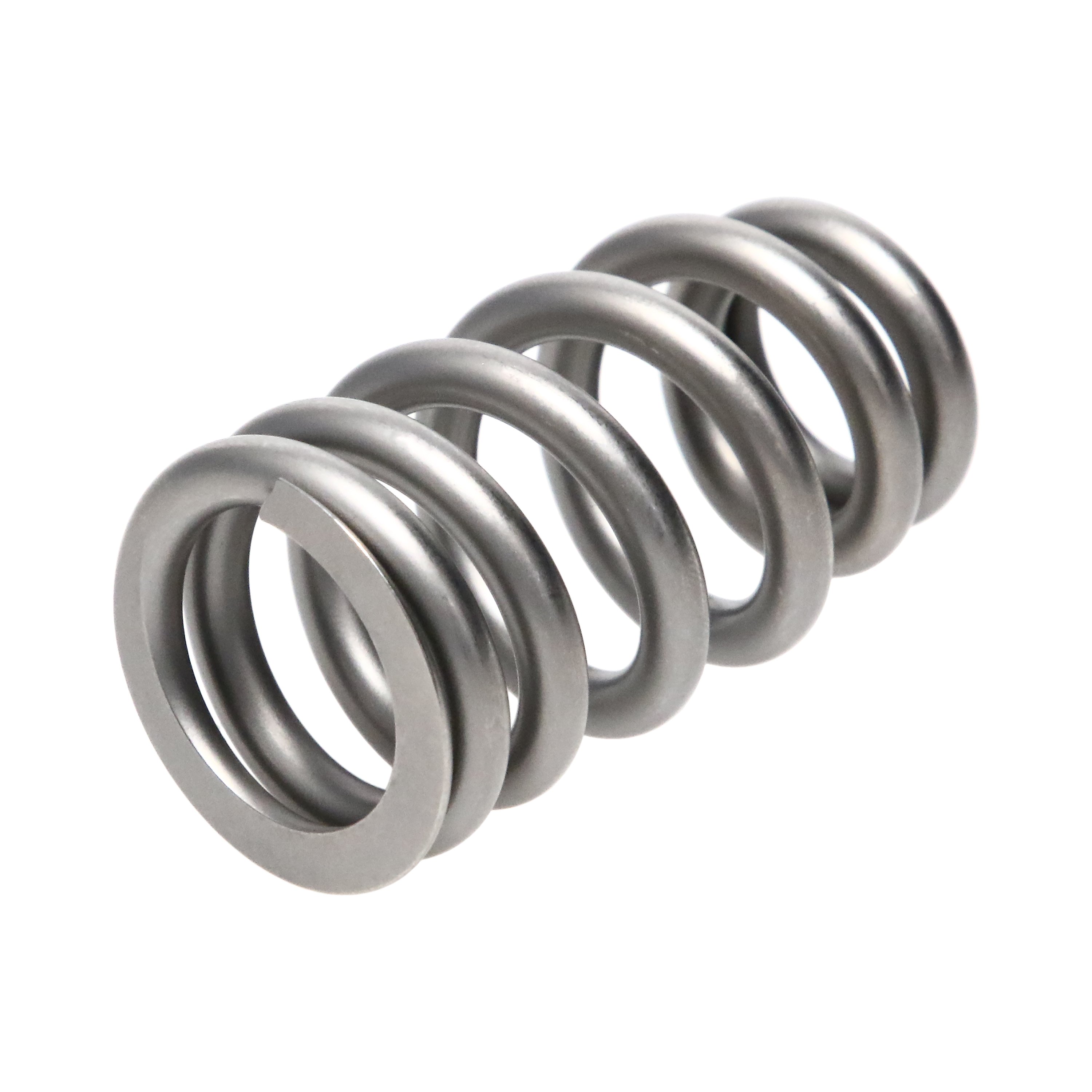

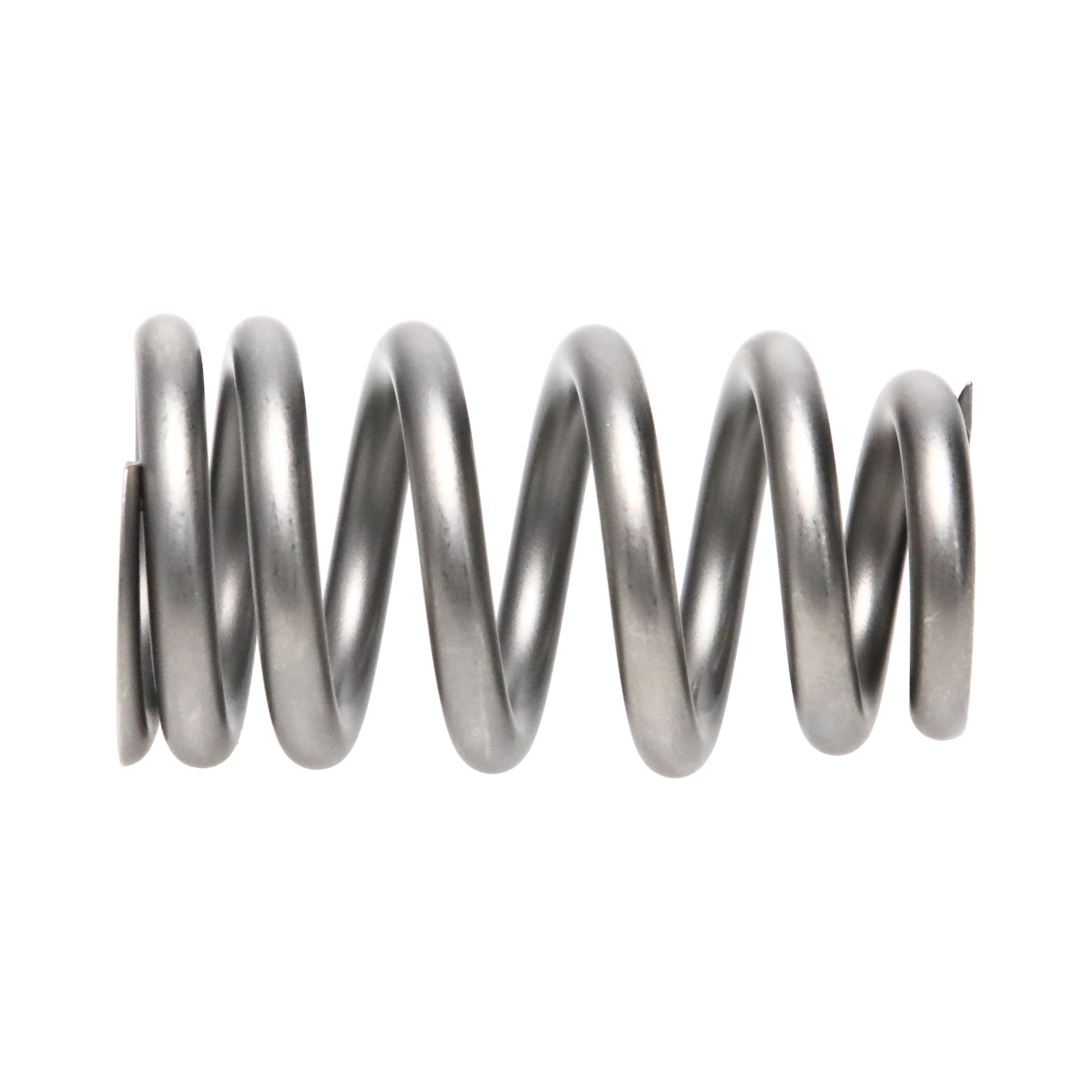

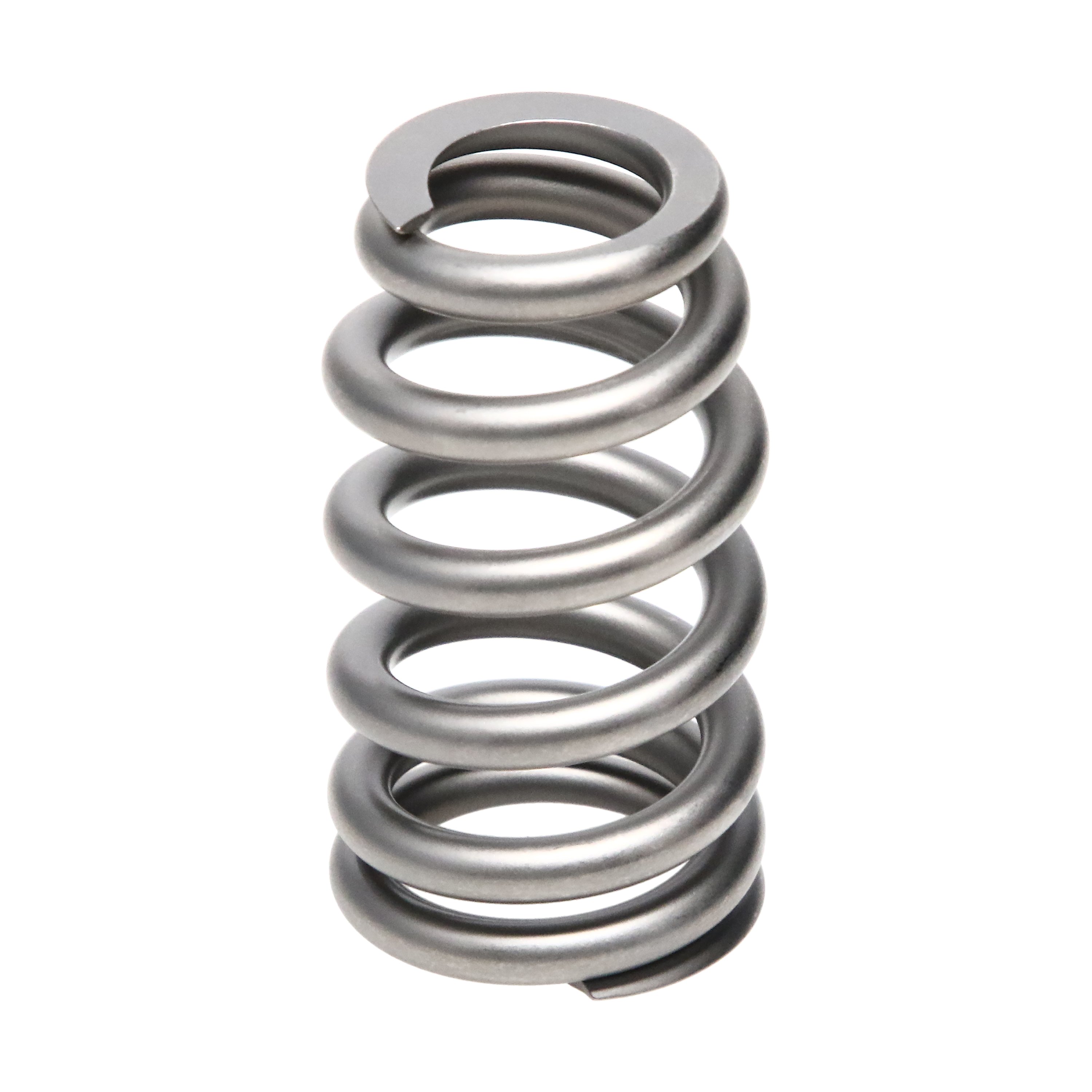

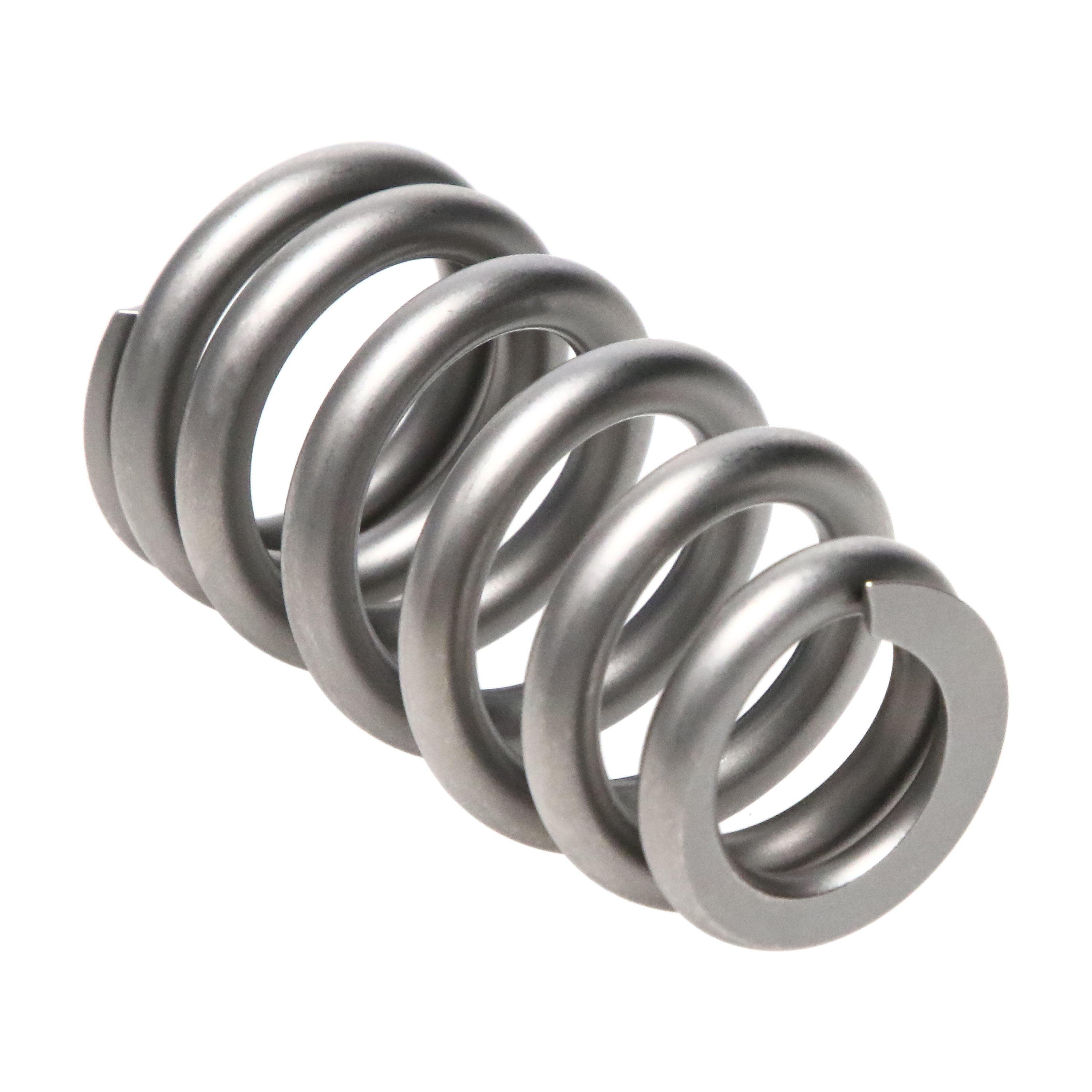

PAC Racing RPM Series Ovate Wire Beehive Valve Spring
Your Price: $20.26
SKU: PAC-1275X
In Stock
–
Top 0.650 in. / Bottom 0.906 in. ID – Top 1.034 in. / Bottom 1.290 in. OD – 1.900 in. installed Height – 0.650 in. Max Valve Lift
GTIN: 00193564530172
/home/1097991.cloudwaysapps.com/htnwxfyvzc/public_html/wp-content/themes/kadence/woocommerce/single-product/product-attributes.php:33:string 'here' (length=4)
/home/1097991.cloudwaysapps.com/htnwxfyvzc/public_html/wp-content/themes/kadence/woocommerce/single-product/product-attributes.php:37:string 'here' (length=4)
| Outer Diameter – Outer Valve Spring | Top 1.034 IN / Bottom 1.290 IN |
|---|---|
| Inner Diameter – Outer Valve Spring | Top 0.650 IN / Bottom 0.906 IN |
| Installed Height | 1.900 IN |
| Installed Load | 140 PS |
| Open Height | 1.300 IN |
| Open Load | 405 PS |
| Open Load / Height (Valve Open) | 405 LB @ 1.300 IN |
| Valve Spring Rate | 408 PS |
| Max Coil Bind | 1.215 IN |
| Max Valve Lift | 0.650 IN |
| Recommended Valve Spring Retainer – 300 Series | R310, R311, R363 |
| Recommended Valve Spring Retainer – 500 Series | R510, R511 |
| Recommended Valve Spring Seat | S111 |
| Valve Spring Series | RPM Series |
| Valve Spring Type | Round Wire Beehive |
| Primary Market | Circle Track|Drag Race|Street Performance |
